Heavy Duty Machine Vice
Model Type: BR HDMV-120-130-150-160-175-200
Category: Heavy Duty Machine Vices
Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices
Description :

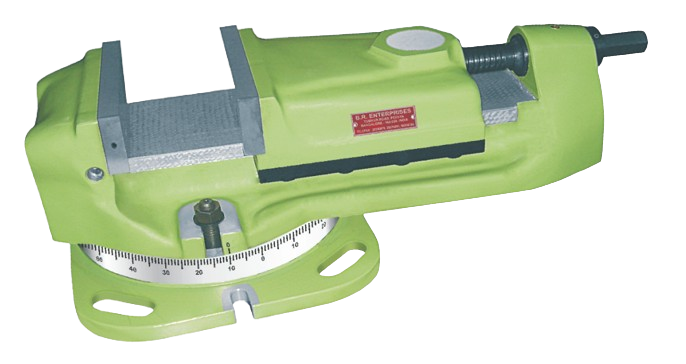

B.R.Heavy Duty M/c vice: Made out of high tensile casting, machined & scrapped, surface ground to ensure maximum accuracy. Jaw plates are made out of tool steel, hardened and ground. stopper Holes tapped holes are made at side jaw Acme threaded Screw rod and nut are made out of alloy steel and heat treated to ensure wear resistence.
Note: If Found any wear and tear or Long Wear out restrictions shall do Re-condition and shall replace if the problem is found.
All spares will be Available. For our Products. Tenon slot - Longitudinal and Cross slot is ground
Warranty: One year conditional warranty on manufacturing defects.
Standard Accessories Supplied Set of T-Bolts, set of Tenons & Screws Two handle and lifting bolts, Operating manual & Inspection Report

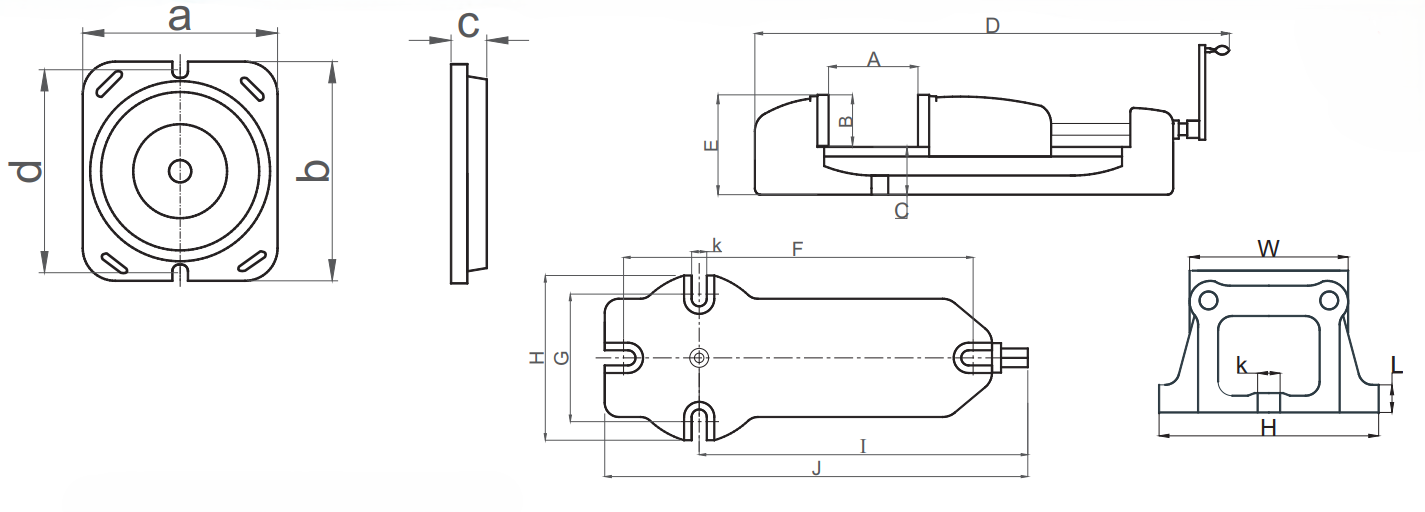

| Specification | BR-HDMV 130 | BR-HDMV 120 | BR-HDMV 160 | BR-HDMV 150 | BR-HDMV 175 | BR-HDMV 200 |
|---|---|---|---|---|---|---|
| Width of the Jaws (W) | 130 mm | 160 mm | 160 mm | 200 mm | 200 mm | 200 mm |
| Depth of Jaws (B) | 45 mm | 55 mm | 55 mm | 65 mm | 65 mm | 65 mm |
| Jaw Opening Range (A) | 0-110 mm | 0-120 mm | 0-150 mm | 0-150 mm | 0-175 mm | 0-200 mm |
| Work Face Height (C) | 55 mm | 78 mm | 78 mm | 88 mm | 88 mm | 88 mm |
| Overall Height without Swivel Base (E) | 102 mm | 135 mm | 135 mm | 155 mm | 155 mm | 155 mm |
| Overall Height with Swivel Base | 142 mm | 162 mm | 162 mm | 192 mm | 192 mm | 192 mm |
| Overall Width of Base (H) | 300 mm | 335 mm | 335 mm | 390 mm | 390 mm | 390 mm |
| Overall Length of Base (J) | 415 mm | 426 mm | 537 mm | 520 mm | 648 mm | 648 mm |
| Overall Length with Handle (D) | 430 mm | 440 mm | 575 mm | 565 mm | 665 mm | 695 mm |
| Clamping Base Height (L) | 16 mm | 18 mm | 18 mm | 30 mm | 30 mm | 30 mm |
| Tenon Slot Size | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm |
| Width of Slot for Clamping (k) | 16 mm | 16 mm | 16 mm | 18 mm | 18 mm | 18 mm |
| P.C.D for Slots at Longitudinal and Cross (G x F) | 180 x 390 mm | 205 x 398 mm | 205 x 465 mm | 250 x 490 mm | 240 x 560 mm | 250 x 595 mm |
| Total Weight with Swivel Base (App) | 33 Kgs | 53 Kgs | 56 Kgs | 75 Kgs | 75 Kgs | 90 Kgs |
| Total Weight without Swivel Base (App) | 23 Kgs | 40 Kgs | 45 Kgs | 63 Kgs | 63 Kgs | 75 Kgs |
| Swivel Base Length x Width (a x b) | 295 x 235 mm | 315 x 260 mm | 315 x 260 mm | 372 x 305 mm | 372 x 305 mm | 372 x 305 mm |
| Swivel Base Height (c) | 40 mm | 40 mm | 40 mm | 45 mm | 45 mm | 45 mm |
| P.C.D of Swivel Base Clamping Slot (d) | 263 mm | 283 mm | 283 mm | 340 mm | 340 mm | 340 mm |
