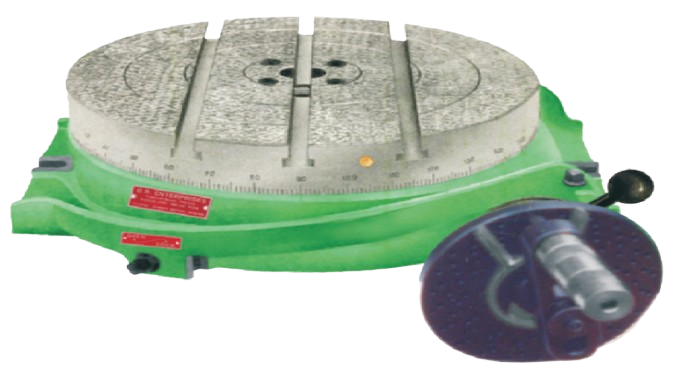

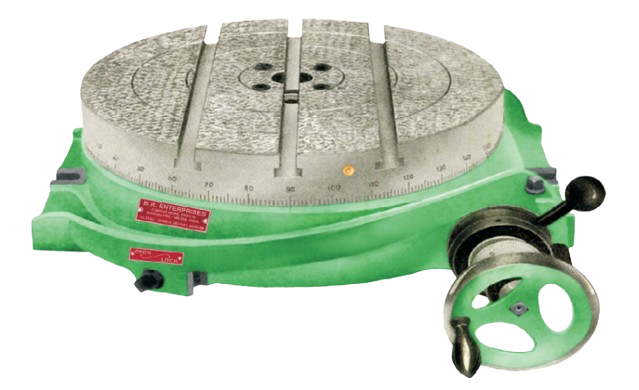

Heavy Duty Rotary Table 400
Model Type: BR RT - 400
Category: Rotary Table
Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices
Description :
BR Precision Rotary Table 400 ( Mechanically Operated) : These tables are very useful for every work shop where accurate rotary movement is called for. They are principally used for milling sectors of circles, drilling, slotting and shaping as well as circular dividing operations. The large Transmissions Ratio ( 1 : 120 ) offers high Dividing Accuracy.
The equipment is made of high grade heavy duty cast iron with Brinell hardness of 180 and precisely machined, hand scrapped to close to tolerances.
The rotary table as the Eccentric type, where as it can be divided or rotated to at quick operation, the work piece must be aligned with respect to center bore clamped in 'T' slots.
Dividing is done by means of hand wheel or knurled knob which operates the worm and worm wheel. The table is graduated from 0° to 360° fordirect setting and with the graduated collar on the worm, the dividing can be done up to 2 minutes of an arc.

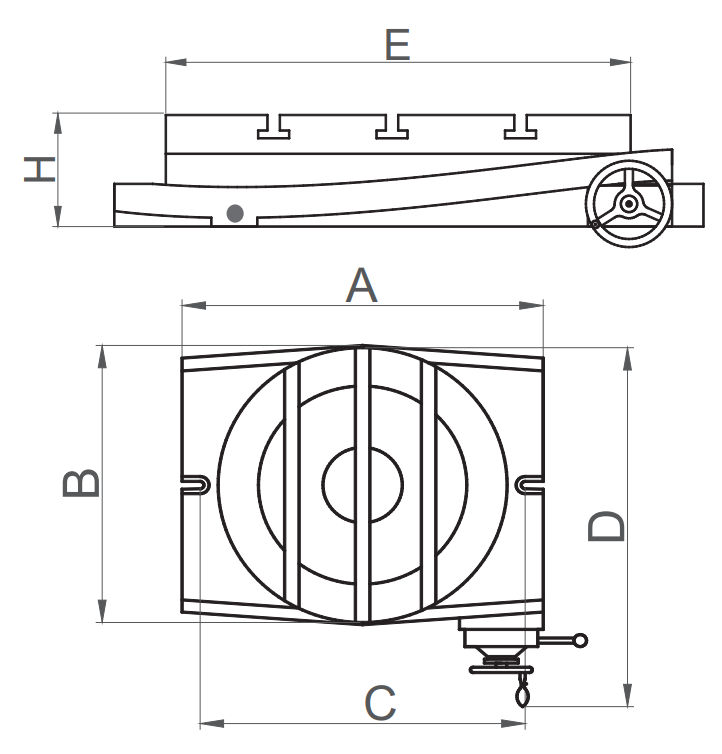

| Specifications | Model Type BR-RT-400 |
|---|---|
| Diameter of Table (E) | 400 mm |
| Length of the Table (A) | 520 mm |
| Width of the Table (B) | 490 mm |
| Height of the Table (H) | 145 mm |
| Overall Width With Handle (D) | 605 mm |
| Tenon Slot Size | 14 mm |
| Clamping Slot | 16 mm |
| Center Bore Dia | 40 mm |
| Rotation of Table Least Count | 360° |
| Least Count of Table | 1° (Degree) |
| Least Count of Graduated Collar | 2 minutes |
| Transmission Ratio | 1:120 |
| P.C.D of Clamping Slot (C) | 460 mm |
| Weight (App) | 135 kgs |
