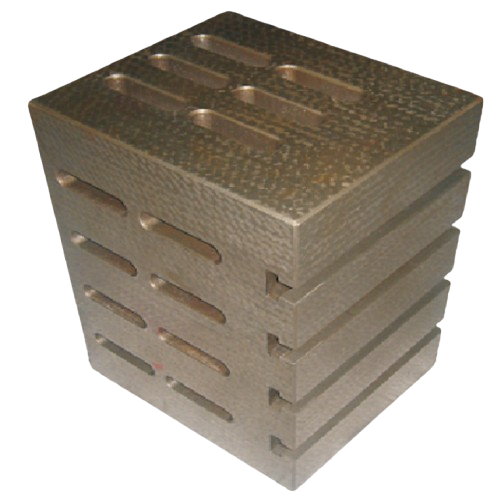

B.R. Precision Inspection Square Box Table
Model Type: BR SQBT - 250
Category: L’Angle Plates & ‘V’ Blocks
Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices

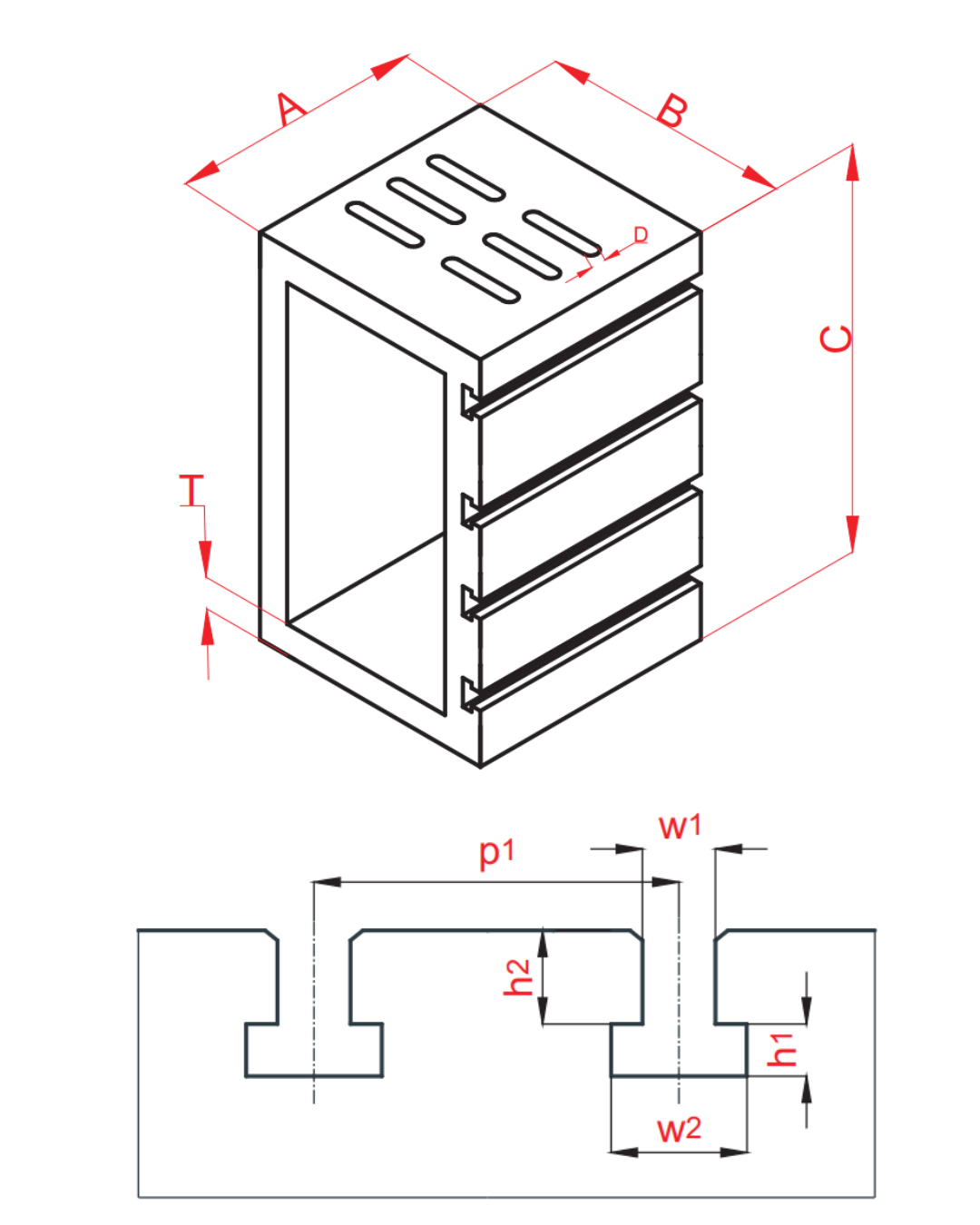

| Specifications | Model Type BR-SQBT-250 |
|---|---|
| Length (A) | 250 mm |
| Width (B) | 150 mm |
| Height (C) | 180 mm |
| Thickness (T) | 20 mm |
| T Slot (grounded) | 14 h7 |
| T Slot Height (h1 x h2) | 12 mm |
| T Slot Width (w1 x w2) | 10 mm |
| T-Slot Pitch (p1) | 51.5 mm |
| Open Slot Size (D) | 14 mm |
| Weight (app.) | 28 kgs |
