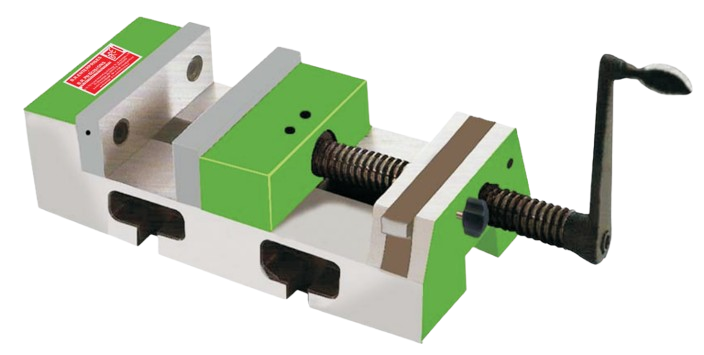

B.R Precision Quick Fit Drill Vice
Model Type: : BR QFDV -100 - 130
Category: Drill-Grinding
Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices
Description :
B.R. Quick Fit Drill Vice: Speical Design for quick clamping. Quick Setting by sliding movement. Operating very quick and easy, can increase so much working efficiency than you can image. Good for Short term and massive production or proto type work, suits for milling machines, grinding machine, precision drilling machine accurate grounded and assembled.
| Specification | Model Type BR QFDV-100 |
Model Type BR QFDV-130 |
|---|---|---|
| Width of Jaw (E) | 100 mm | 130 mm |
| Depth of Jaw (B) | 35 mm | 35 mm |
| Work Face Height (C) | 35 mm | 43 mm |
| Opening Range (A) | 100 mm | 125 mm |
| Total Height (D) | 72 mm | 78 mm |
| Total Length of Base (G) | 425 mm | 490 mm |
| Total Width of Base (E) | 100 mm | 130 mm |
| Total Height Work Face (C) | 40 mm | 43 mm |
| Clamping Slot | 14 mm | 14 mm |
| Weight (App) | 9 Kgs | 14 Kgs |
