Description :

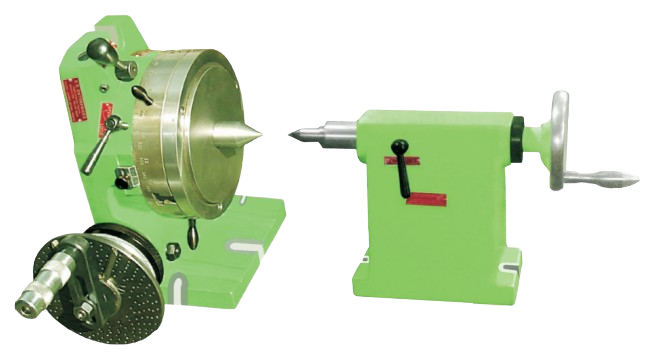

B.R.Rotary cum Dividing and Indexing Head 160 & 200: : It is an indispensable item of equipment of the modern tool room. It The Indexing head is an indispensable item of equipment of the Modern Tool Room. It is a specialized tool that allows a workpiece to be circularly indexed that is easily and precisely rotated to preset angles or circular divisions. Common jobs for a dividing head include machining the flutes of a milling cutter cutting teeth of a gear, Milling curved slots and drilling a bolt hole circle around the circumference of a part. This model is similar to the universal Dividing head except that it is designed to be tilted as well as rotated it is designed to be tilted from 0º to 90º vertical, where as in this Indexing head Model head will be parallel to the Table. It can be used as equally as C.N.C Rotary table, This indexing head as high accurate and can be divided and indexing at any P.C.D work it can be rotated easily, with engage disengage type. The one round rotation of the handle varies at 4 (degree ). The Transmissions ratio for this is 1 : 90 It is used to check run out, by supporting tail stock Directly to the indexing head. It can be used for any kind job like, making P.C.D Holes and Squares, key way it is used for multi purpose type for any kind of tool room purposes, In this it is Available in Plain Type with Any No. Of Indexing As per the Request * This can be used in Horizontal with vertical conventional machines. This tool may also be used in the Milling machine, V.M.C, H.M.C and for inspection department
