Direct Indexing : A jig Bore Indexing plate with 24 Holes Facilites Dividing 2, 3, 4, 6, 8, 12 and 24 stations, Please note that direct indexing the worm wheel should be Disengaged.
Spiral Gear Milling, Sper Gear, Helical Gear, Drill Remorse, Tapping Etc.:
Spiral Milling can be carried out by connecting the Dividing head spindle to the table lead screw of the machine by means of change gear quadrant and train of gears.

B.R. Precision Universal Dividing Head

Model Type: BR - UDH -100 - 130 - 150 - 180

Category: Hydraulic Machine Vices

Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices

Description :

B.R Universal Dividing Head : It has a large range of application in constructional engineering, tool manufacturers and construction of jigs and fixtures especially in small scale production of toothed wheels, spiral milling, polygonal piece milling cutters, Taper taps and flutes, reamers, end mills etc.,
The universal Dividing head is compact in design and rigid in construction and consists of close grained heavy duty cast iron housing and body. The main spindle is hardened and ground the bronze worm wheel (hardened and ground) run in oil bath to have minimum wear. The universal dividing head can be used for holding components either between centers or with 3 jaw chuck as well as mandrel.
The spindle rotation is graduated for 360º You can set for 1º & Tilting Head at 0-90º

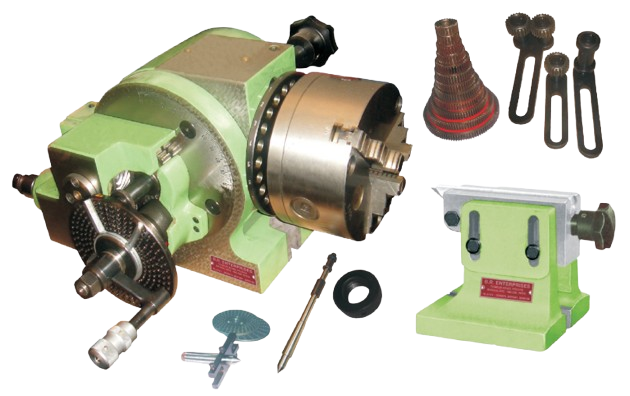

STANDARD ACCESSORIES: BRUDH

  1. a) Tail stock     b) Carrier     c) Long Center     d) Short Center with draw bar
  2. Change Gears and Centre Steady - 1 No.
  3. Index Plates and Spindle Knurling Cap - 1 No.
  4. Change Gear Bracket with Single Idler
  5. Change Gear Bracket with 2 Idler
  6. Change Gear Bracket for Compound Train
  7. Change Gear Aluminum Box Cover - 1 No.
  8. Operation Instruction Manual
  9. With All Clamping Kit

Optional accessories: 3 Jaw Chuck and Flange

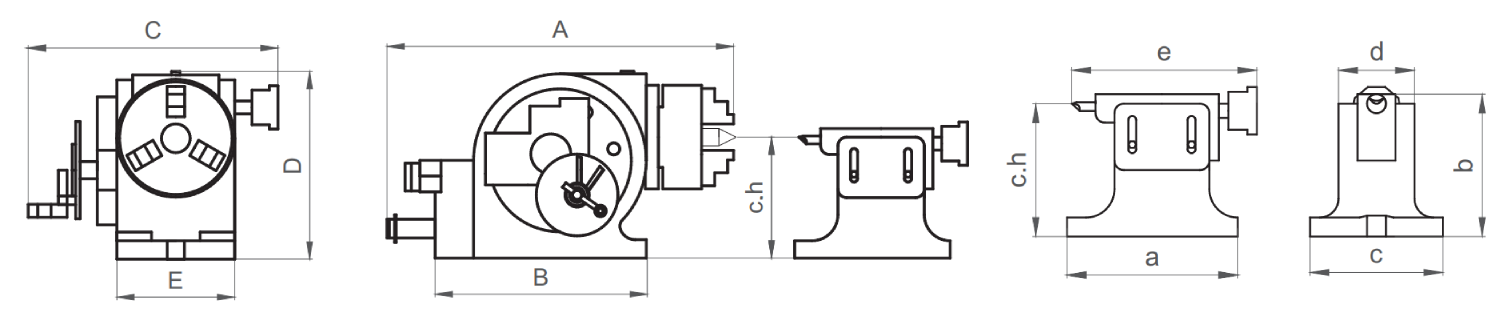

Specification BR TL-100 BR TL-120 BR TL-150 BR TL-180
Tail Stock Center Height (c.h) 100 mm 130 mm 150 mm 180 mm
Total Length of Tail Stock with Handle (e.e) 180 mm 210 mm 215 mm 215 mm
Total Length of Tile Stock (a) 148 mm 180 mm 180 mm 180 mm
Total Width of Tile Stock (c) 100 mm 118 mm 118 mm 118 mm
Total Height of Tile Stock (b) 110 mm 134 mm 154 mm 184 mm
Total Weight of Tile Stock (approx.) 14 Kg 17 Kg 19 Kg 20 Kg
Main Product
Specification BR-UDH 100 BR-UDH 130 BR-UDH 150 BR-UDH 180
Center Height (c.h) 100 mm 130 mm 150 mm 180 mm
Transmission Ratio 1:40 1:40 1:40 1:40
Spindle Taper MT-3 MT-4 MT-4 MT-4
Through Bore 16 mm 20 mm 20 mm 20 mm
Overall Length (A) 335 mm 347 mm 347 mm 347 mm
Overall Width (C) 345 mm 345 mm 345 mm 345 mm
Overall Height (D) 185 mm 225 mm 245 mm 345 mm
Change Gear Bore Size 20 mm 25 mm 25 mm 25 mm
No. of Index Plate 4 Nos 3 Nos 3 Nos 3 Nos
Tenon Slot 14 mm 14 mm 14 mm 14 mm
Clamping Slot 16 mm 16 mm 16 mm 16 mm
Tile Stock Center Height 100 mm 130 mm 150 mm 180 mm
Chuck Flange Sizes 100 mm 160 mm 160 mm 160 mm
3 Jaw Self Centering Chuck Sizes Ø 100 mm Ø 160 mm Ø 160 mm Ø 160 mm
Weight (approx.) 48 Kgs 70 Kgs 75 Kgs 85 Kgs
Index Plate No. of Holes a) 15,16,17,18,19
b) 20,21,23,27,29
c) 31,33,37,39,41
d) 45,47,49
a) 20,19,18,17,16,15
b) 33,31,29,27,21
c) 49,47,43,41,39
a) 20,19,18,17,16,15
b) 33,31,29,27,21
c) 49,47,43,41,39
a) 15,16,17,18,19,20
b) 21,23,27,29,30
c) 49,47,43,41
