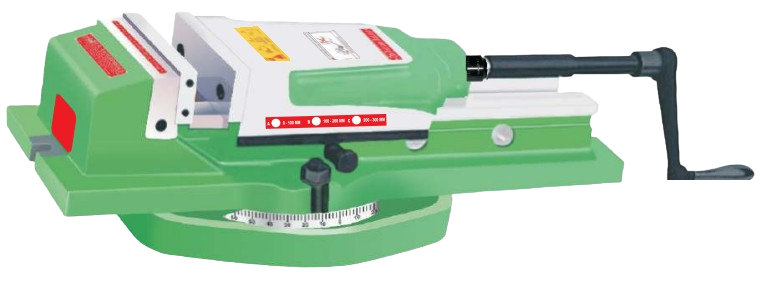

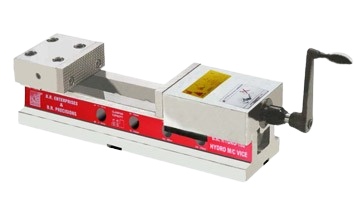

B.R. Precision Hydraulic Machine Vice
Model Type: BR - HYMV - 110, 130, 150, 160, 250, 300
Category: Hydraulic Machine Vices
Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices
- No Hammering
- No Pipe Locking
- No Hydraulic Power Pack Required
- Extremely easy to clamp and unclamp
- Trouble Free Performance
Description :
This type of Hydraulic vice achieves a clamping force up to 5000kgs using the simple turn of the handle without any effort. This advantage makes them ideal for heavy duty clamping in Machines This hydraulic vice is Made out of high tensile casting Machined and surface flame and ground to ensure maximum accuracy. Jaw plates are made out of tool steel machined and heat treated Hardened at 52° to 56° HRC and ground with stopper hole in side of the clamping jaws Inbuilt hydraulic cylinder for high clamping force which does not required any external force. Different stations given that is Pin changing for clamping the work pieces at different levels for shortening the time lapse of rotating the handle Tenon slots are grounded Longitudinal and cross squareness and Parallelism accuracy at 0.02 Micron High deflection / Bending resistant constructed for machining center Milling VMC and other machine shop applications
Standard Accessories Supplied Set of T-Bolts, set of Tenons & Screws Two handle and lifting bolts, Operating manual & Inspection Report

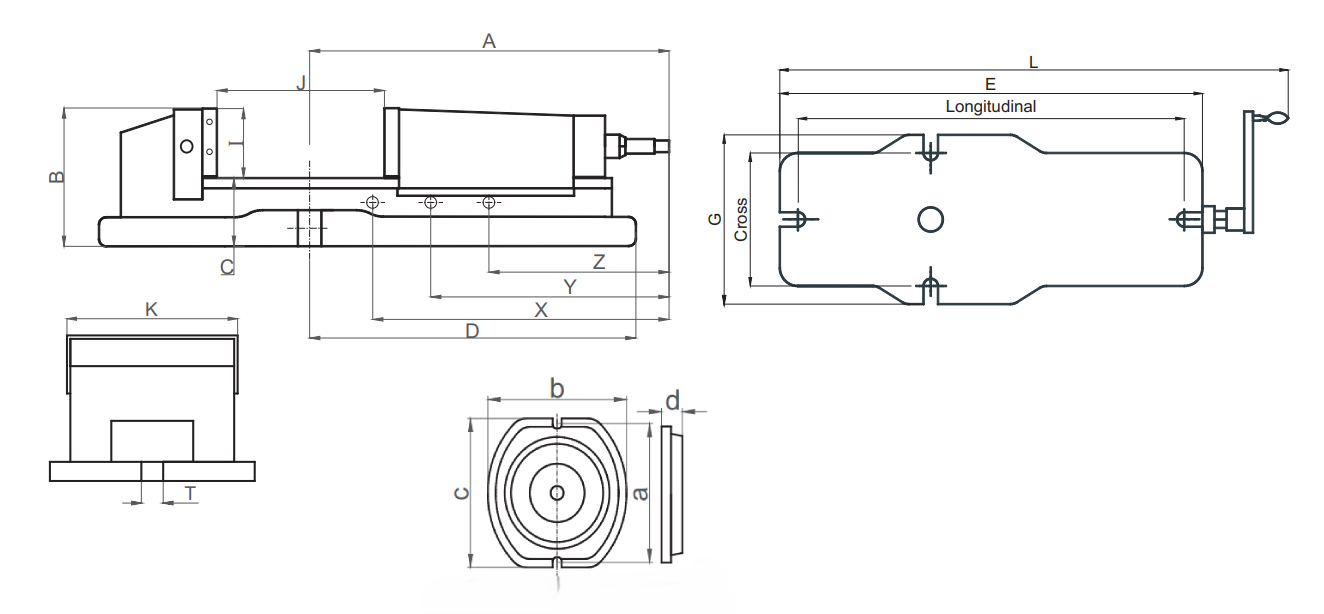

| Specification | BR-HYMV-110 | BR-HYMV-150 | BR-HYMV-160 | BR-HYMV-200 | BR-HYMV-250 | BR-HYMV-300 |
|---|---|---|---|---|---|---|
| Width of jaws (K) | 110 mm | 150 mm | 160 mm | 200 mm | 250 mm | 300 mm |
| Depth of jaws (I) | 35 mm | 55 mm | 55 mm | 65 mm | 65 mm | 55 mm |
| Max. jaw opening range (J) | 0 - 180 mm | 0 - 150 mm | 0 - 200 mm | 0 - 300 mm | 0 - 250 mm | 0 - 300 mm |
| Work face height (C) | 59 mm | 80 mm | 80 mm | 98 mm | 80 mm | 80 mm |
| Position No I (X) | 0 - 65 mm | 0 - 75 mm | 0 - 100 mm | 0 - 100 mm | 0 - 85 mm | 0 - 100 mm |
| Position No II (Y) | 65 - 125 mm | 75 - 150 mm | 100 - 200 mm | 100 - 200 mm | 85 - 170 mm | 100 - 200 mm |
| Position No III (Z) | 125 - 180 mm | --- | --- | 200 - 300 mm | 170 - 250 mm | 200 - 300 mm |
| Overall width with swivel base (G) | 205 mm | 335 mm | 335 mm | 370 mm | 330 mm | 330 mm |
| Overall width without swivel base (B) | 165 mm | 225 mm | 225 mm | 275 mm | 184 mm | 136 mm |
| Length of base (E) | 435 mm | 465 mm | 530 mm | 675 mm | 580 mm | 615 mm |
| Clamping force | 1000 Kgs | 4000 Kgs | 5000 Kgs | 6000 Kgs | 5400 Kgs | 5400 Kgs |
| Overall height with swivel base (L) | 138 mm | 165 mm | 184 mm | 221 mm | 184 mm | 184 mm |
| Overall height without swivel base (B) | 95 mm | 136 mm | 136 mm | 165 mm | 136 mm | 136 mm |
| Tenon slot size (T) | 14 mm | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Clamping slot size | 16 mm | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Total weight (Approx) | 19 Kg | 45 Kg | 50 Kg | 60 Kg | 55 Kg | 55 Kg |
| Total weight with swivel base (Approx) | 24 Kg | 50 Kg | 55 Kg | 94 Kg | 65 Kg | 65 Kg |
