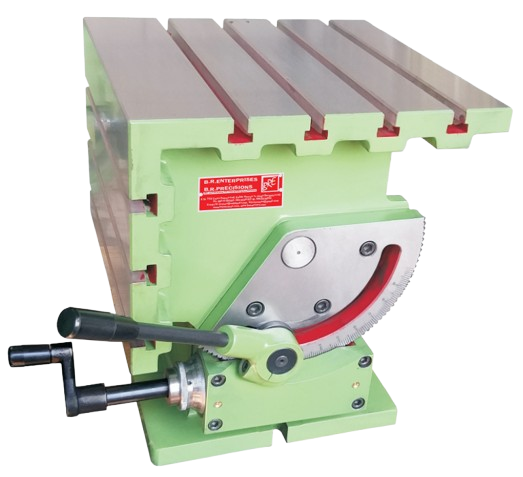

Universal Tittling Box Table 400
Model Type: BR RD TBT - 400
Category: Precision Tables
Tags: Drill Cum Grinding, Heavy Duty Machine, Hydraulic Machine Vices
Description :

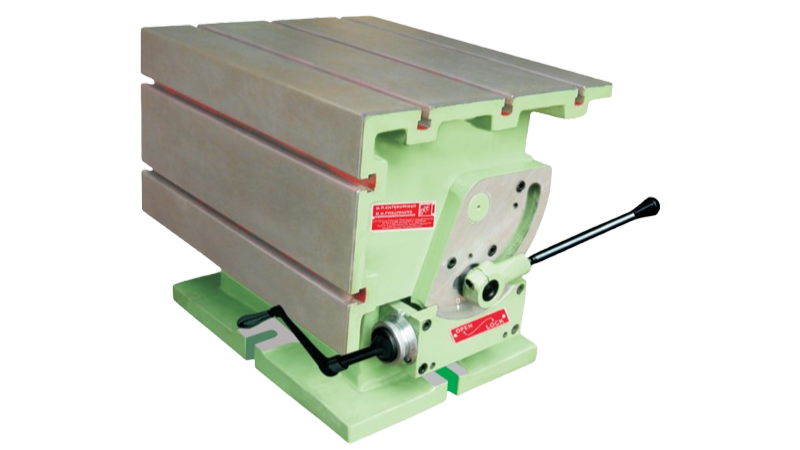

B.R.Radial Drilling Tilting Box Table-400 : This is a kind of model very use full for the V M C and H M C Machines. It can be used in the form like tilting from 0 to 90º It can aslo set to 1º. It is as same as fifth axis work process. In this model Work will be utmost accurate precision. In this Tilting transmission ratio will be 1:120 and graduation collar will be 2 minutes. Capacity of work load can be 500 to 600kgs even at tilted position.
| Specification | Model Type BR TBT - 400 |
|---|---|
| Length of table (L) | 415 mm |
| Width of table (B) | 290 mm |
| Width of Table (A) | 410 mm |
| Height of table (C) | 430 mm |
| Total Face Height Tilting at 90° (H) | 450 mm |
| Table T-slot Size (Optional) | 14 H7 (standard) |
| Base width (D) | 325 mm |
| Base Length (E) | 360 mm |
| Angular setting | 90° (degree) |
| Angular least count | 1° (degree) |
| Graduation collar Least Count | 2 Minutes |
| Base clamping slot size | 18 mm |
| Height of Tenon slot (h1 × h2) | 16 × 10 mm |
| Width of Tenon slot (w1 × w2) | 14 × 25 mm |
| P.C.D for T-Slot (a) | 80 mm |
| P.C.D for Open Slot for clamping (b - c) | 293 mm - 328 mm |
| Max. Tilting torque load | 500 Kgs |
| Weight (app) | 170 kgs |
